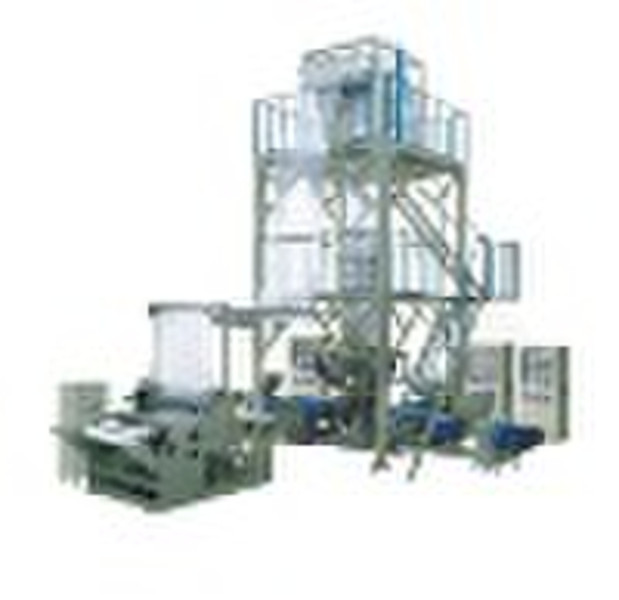

Three-layer Common-extruding Rotary Die Film Blowi

Characteristics 1.Die head is layer type spiral mandrel, continuous 3600 rotation. 2.Screen pack changer design is reliable, safe in operation and change the fitter screen easier. 3.Various functional parts may be installed to the lies.,such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device. Main Technical Variables Model3SJ-G1000 3SJ-G12003SJ-G1500Screw Diameter55×2mm60×1mm60×2mm 65×1mm65×2mm 70×1mmScrew Ratio L/D28:128:128:1Screw Speed15-150r/min15-150r/min15-150r/minMain Motor Power15Kw×2 18.5Kw×118.5Kw×2 22Kw×122Kw×2 30Kw×1Extrusion Output(Single)50kg/h80kg/h100kg/hRange of Die150 200200 250×1250 300×1Single-sided Thickness of Film0.01-0.10mm0.01-0.10mm0.01-0.10mmMax. Folding Width of Film1000mm1200mm1500mmElectric Total Capacity76Kw88Kw102KwOverall Dimension6600×4100×5000mm6800×4300×6000mm7000×4800×7500mmWeight of Machine4T5T6T
